Model NO.
UVC LED
Delivery:
FOB Shenzhen
Minimum order quantity:
10000 pieces
Supply Ability:
5kk pieces / Month
Country of Origin:
China
Stock Time:
10 Days
Quantity:



DID YOU KNOW
UVC RADIATION KILLS UP TO
99% OF BACTERIA,VIRUSES AND GERMS IN THE AIR AND ON
SURFACES.

MANY HOSPITALS AND HEALTHCARE FACILITIES CURRENTLY USE UV-C LIGHT TO KILL
BACTERIA AND VIRUSES.

      Description

UVC is a disinfection method that uses short-wavelength ultraviolet light to koll or inactivate microorganisms by
destroying nucleic and disrupting their
DNA,leaving them unable to perform vital cellular functions .
UVC disinfection is used in a variety of applications, such as food,air,and water purification.

Advantage
No maintenance requirments
Low power consumption

Model and Main Specification
Part NumberWavelengthLuminousPowerVoltageCurrentViewing Angle
BND-3535SMD-UVA+CUVC:270-280nm4-6mW0.35W5-6V30-60mA120 degree
UVA:395-400nm40-50mW







Product Description

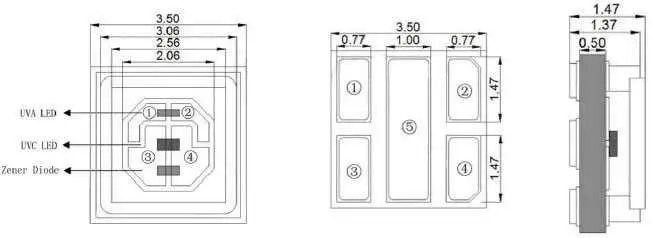

UVC+UVA+ZENER
Suitable for your Sterilization
Dual-LED parallel,Dual Wavelength
No need to add indication light






           High
   Transmittance

   Quartz Glass Lens
  High Transmittance rate of UVC light
   High photosynthetic efficiency,High temperature resistance,Anti-light decay.





   Great
   Heat sink

    Aluminum Carbide PCB
  Heat sink rate is only 2.5/W
    High strength,high insulation Aluminum Carbide PCB the heat sink rapidly.

 Reliable    Branded Chips Soucing
   10×20 MIL Large size chip

    Resistance to over current input,Strong anti-attenuation ability.

                   Zener Paralleled package
                  Perfect Anti-Static Protection
                   Stable voltage and current,more safe and long life span

                Ceramic Eutectic Welding
                Rapid Heat Conduction
                 High Efficiency heat conduction,longer life span and reliable quality.




APPLICATION SCENARIO
The UVC LED 270-280nm is widely used for atmosphere disinfection&sterilization,water purification
toothbrush/powder box/closestool disinfection,medical equipment sterilized disinfection
