Model NO.
5050 RGB
Delivery:
FOB Shenzhen
Minimum order quantity:
10000 pieces
Supply Ability:
500kk pieces / Month
Country of Origin:
China
Stock Time:
10 Days
Quantity:



Specification

        Inner drive ic 4pin 6pin 5V 12V 5050 RGB SMD LED



Setting Information
Item5050 ic led chip
VoltageDC 5V
Current60mA
Light ColorRGB+ic
Chip BrandEpistar/Sanan
Power0.2W
CertificationCE RoHS
Product Description


Product Details

size:5.0*5.0*1.5mm
1.High Lumens Output&Low Brightness Decay
2.Stable Performance&Great CCT Inity.
3.Wild Color Temperature Range.
4.High CRI More Than 95 avaliable.
5.Good raw materials.
6.Taiwan Epistar,Xiamen Sanan chips.








Product Material

1.99.9% gold wire
2.Taiwan red copper holder good cooling
3.High brightness Sanan Epistar led chip.
Original factory formal chip more stable.
4.High refractive index silicone.


Initial Electrical/Optical Characteristics(TA=25±5)




ItemUnitsMin.Typ.Max.
Forward Voltage (VF)V33.4
Reverse Current(IR)uA5
Viewing Angle120º
Luminous fluxlm2224
Light intensity(IV)mcdR:500/G:1500/
B:400
R:700/G:12000/
B:600
Dominant Wavelength(WLD)nmR:620/G:520/
B:460
R:630/G:530/
B:470

Electrical/ Optical characteristics
Absolute Maximum Ratings(Ta=25)
IFP Conditions:1/10 Duty Cycle,0.1msec Pulse Width

ItemSymbolAbsolute Maximum
Rating
Unit
Forward CurrentIF60mA
Pulse Forward CurrentIFP90mA
Reverse VoltageVR5V
Power DissipationPD100mW
Operating TemperatureTopr -40+85
Storage TemperatureTstg -40+85
Soldering TemperatureTsldReflow Soldering:260
Hand Soldering:350
for 10sec.
for 3sec.

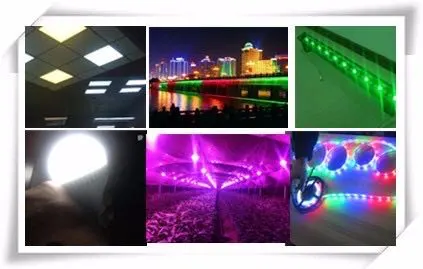

Applications


Application of 5050 SMD LED chip:

All kinds of strip and tube.
Switches,keys backlighting.
Electronic display panel light.
Marker lights,reading lamps.
Outdoor backlighting displays.
External and internal automotive lighting.
Panel light,candle light,downlight,bulb lights.
Emergency lighting,signal and symbol luminaire,Ect.
