Model NO.
5mm RGB
Delivery:
FOB Shenzhen
Minimum order quantity:
10000 pieces
Supply Ability:
50kk pieces / Month
Country of Origin:
China
Stock Time:
10 Days
Quantity:

4pin Led diode basic info

Item NumberBND-F5RGBCA-4CBrightnessRed:1000-1200mcd
Green:3000-5000mcd
Blue:2000-3000mcd
VoltageRed:1.8-2.2V
Green,Blue:3.0-3.4V
Peak WavelengthRed:620-630nm
Green:525-530nm
Blue:460-465nm
ShapeRoundBeam Angle40 degree
Forward Current20mALife Time50000 hours

Tri-color Led diode details

1. Size: 3mm,5mm, 8mm,10mm

2. Shapes: Round,Flat,Square,Straw hat,Super Flux

3. Emitting color: red,green,blue,white,yellow,pink,purple,amber,warm white,RGB

4. Beam Angle: 15,25,30,45,60,90,120 degrees

5. Wave length: 395-630nm

6. Forward Voltage: 1.8-2.2V for red,yellow,and amber color,2.8-3.4V for white,blue,green,pink,warm white,purple

7. Forward Current: 20mA

8. Lens colors: water clear,color diffused

9. Life Span: 50,000HRS

10. Packing: 1000Pcs/bag

11. With CE/ROHS/ISO9001:2000 Approved

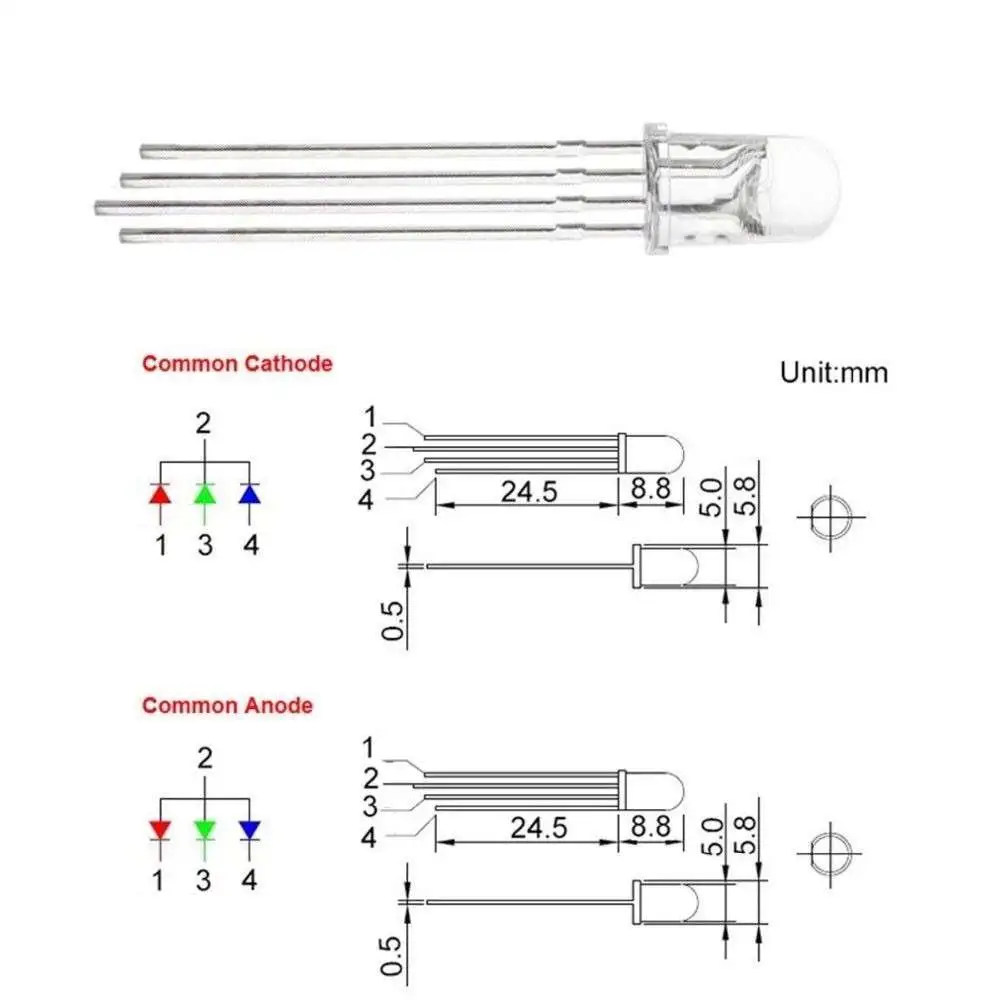

Tri-color Led diode details dimension

Applications




Rgb Led diode production line overview.
