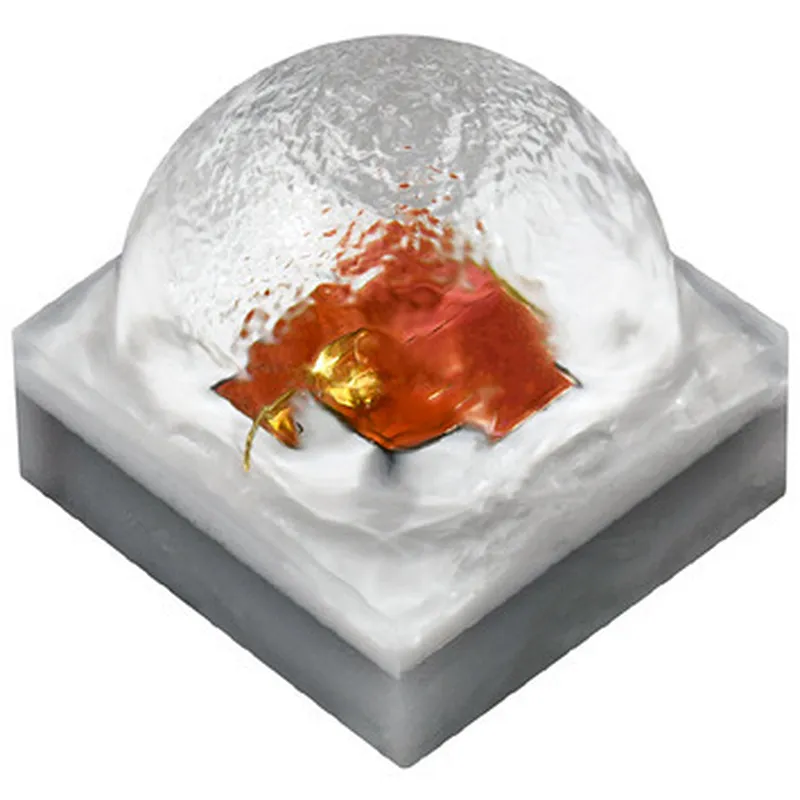

High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED
High Power Ceramic 1616 SMD LED

High Power Ceramic 1616 SMD LED

Model NO.
BSH-CE16R-000000
Quantity:

Product Parameters

Product TypePart NumberColorWLD(nm)/
CCT(k)		IV(lm)VF(v)IF(mA)ESDViewing
Angle (°)
High Power Ceramic 1616 SMD Series (Dome Package)BSH-CE16R-000000Red612–62850–902.0–2.6350≥3 kV120°
BSH-CE16Y-000000Yellow584–59636.8–58.72.0–2.6350≥3 kV120°
BSH-CE16B-000000Blue465–48530.7–58.72.8–3.4350≥2 kV120°
BSH-CE16G-000000Green520–54085–1502.8–3.4350≥2 kV120°
BSH-CE16PA-000000PC-Amber587.5–592.585–1302.8–3.4350≥2 kV120°
BSH-CE16W-000000White2700–8000 K130–1742.8–3.4350≥2 kV120°

Test conditions: IF as listed for each part, Ts = 25°C, RH = 60%. Luminous-flux and electrical ranges depend on the selected BIN.

Dimensions

Nominal package footprint: 1.6 × 1.6 mm. Refer to the corresponding datasheet for mechanical drawing, tolerances and height.
