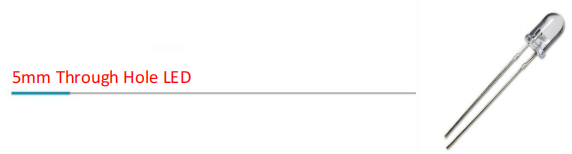

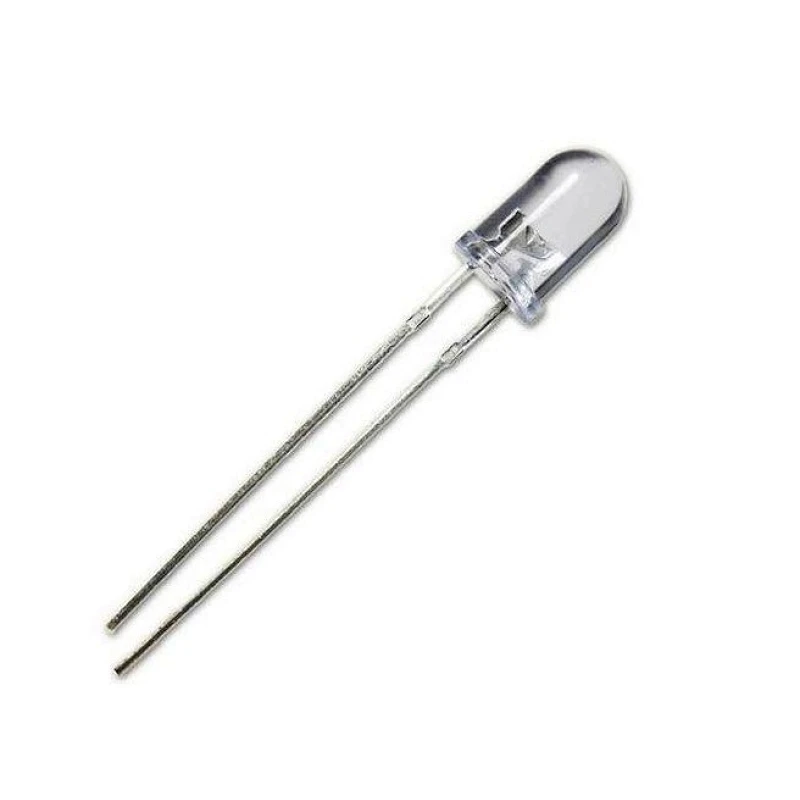

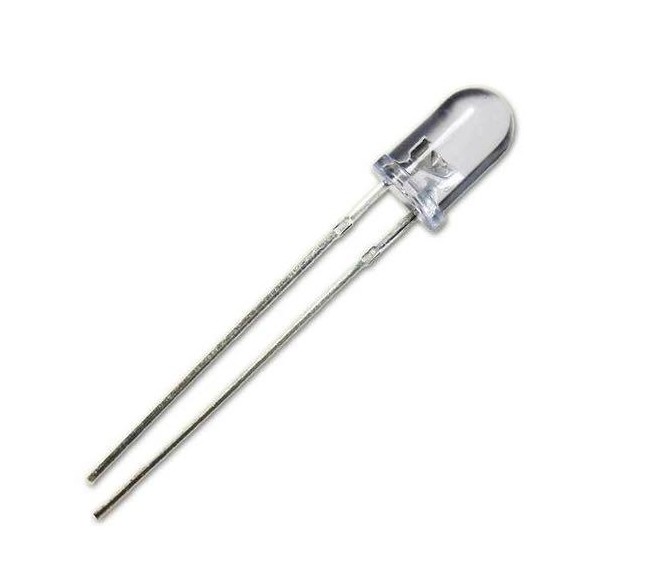

5mm Through hole LEDs

Model NO.
P00000024
Quantity:

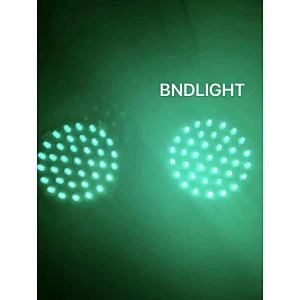

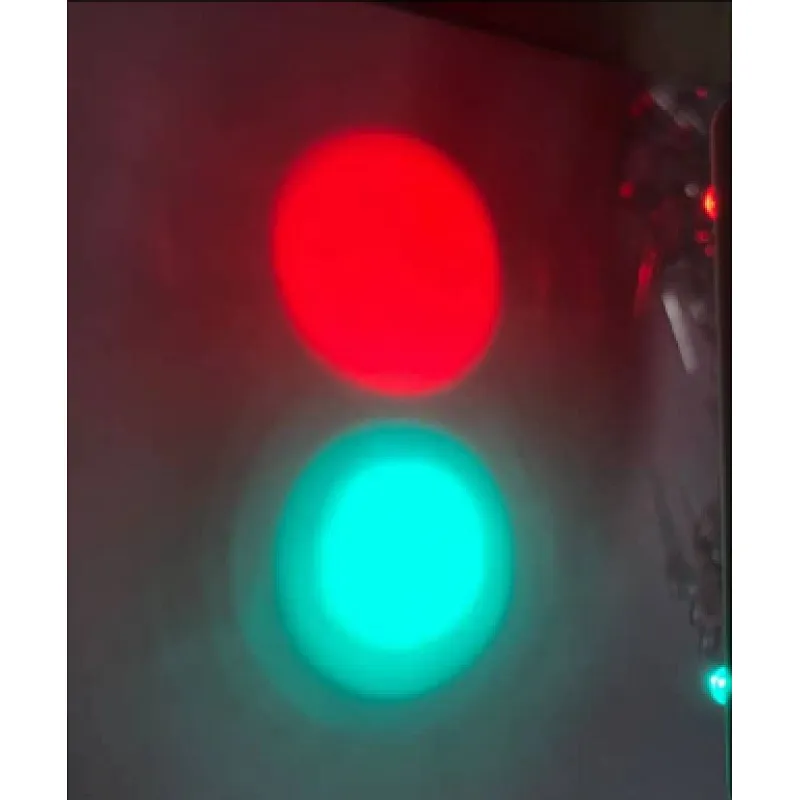

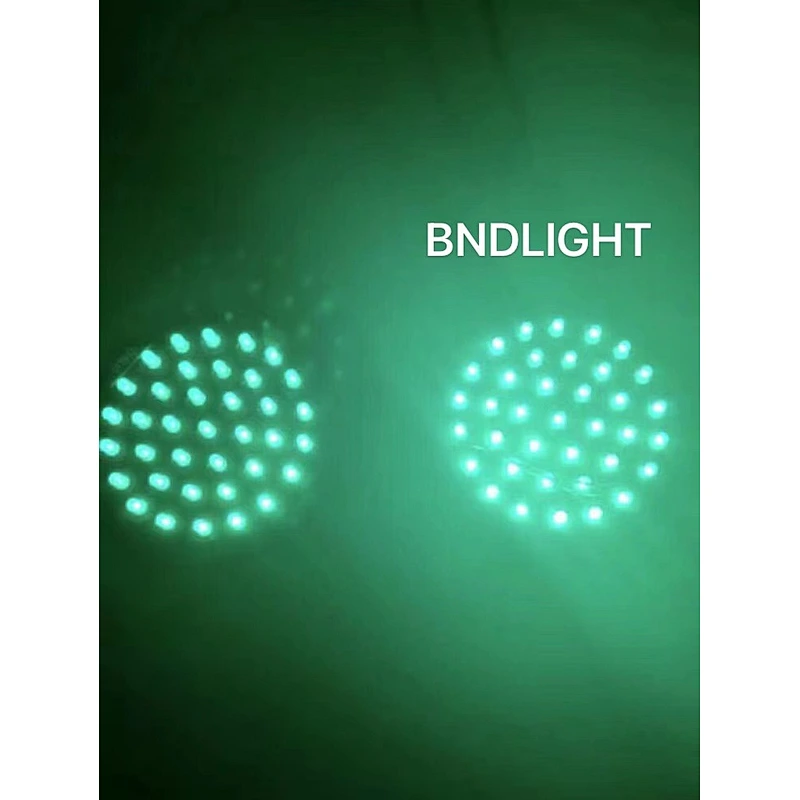

   FOCUS ON TRAFFIC LIGHT LEDs
Product Parameters:

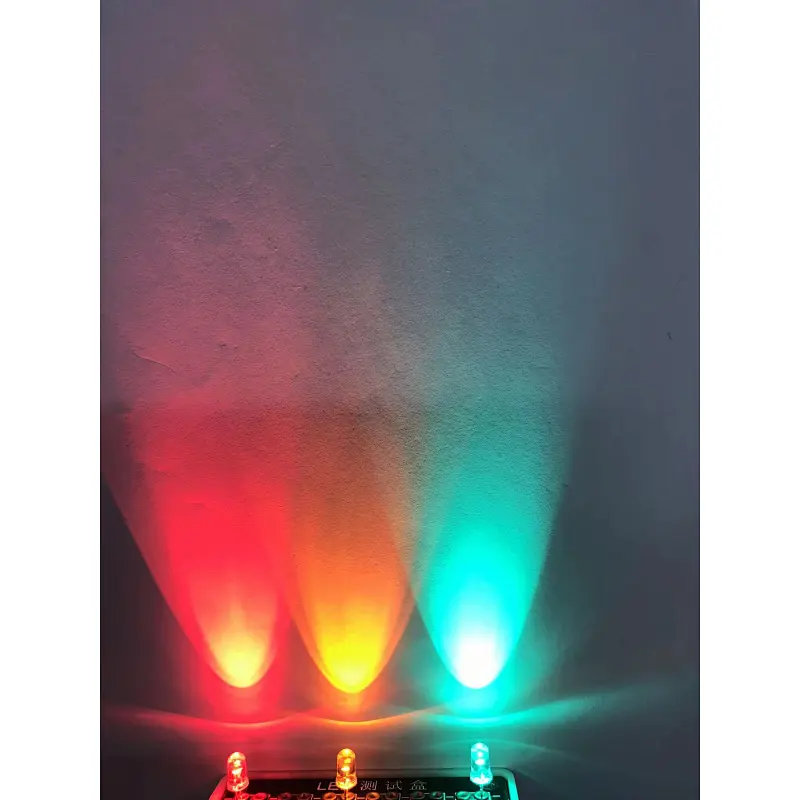

Part No.Emitting ColorVoltageCurrentIv(mcd)WavelengthViewing Angle
BND-TF5RH-000000Red1.8-2.6V20mA12080-33000620-630nm15
BND-TF5YH-000000Yellow1.8-2.6V20mA12080-33000584-596nm15
BND-TF5GH-000000Bluish green2.75-3.5V20mA16600-46000500-510nm15
BND-TF5PGH-000000Pure Green2.75-3.5V20mA16600-59500520-535nm15
BND-TF5RM-000000Red1.8-2.6V20mA12080-33000620-630nm30
BND-TF5YM-000000Yellow1.8-2.6V20mA12080-33000584-596nm30
BND-TF5GM-000000Bluish green2.75-3.5V20mA11500-21050500-510nm30
BND-TF5PGM-000000Pure green2.75-3.5V20mA14500-24000520-535nm30

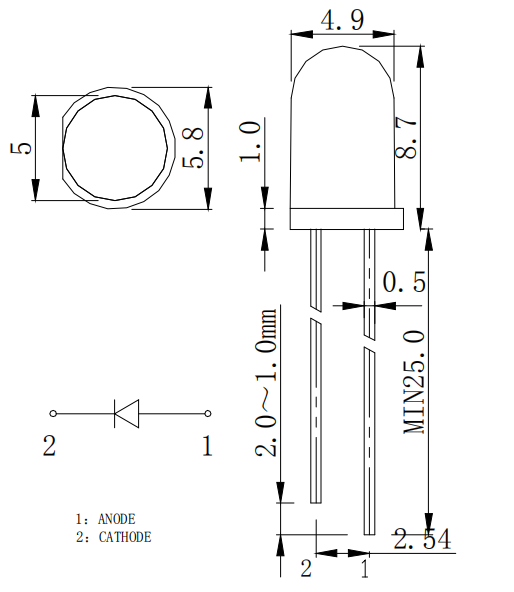

Dimensions:







Applications:

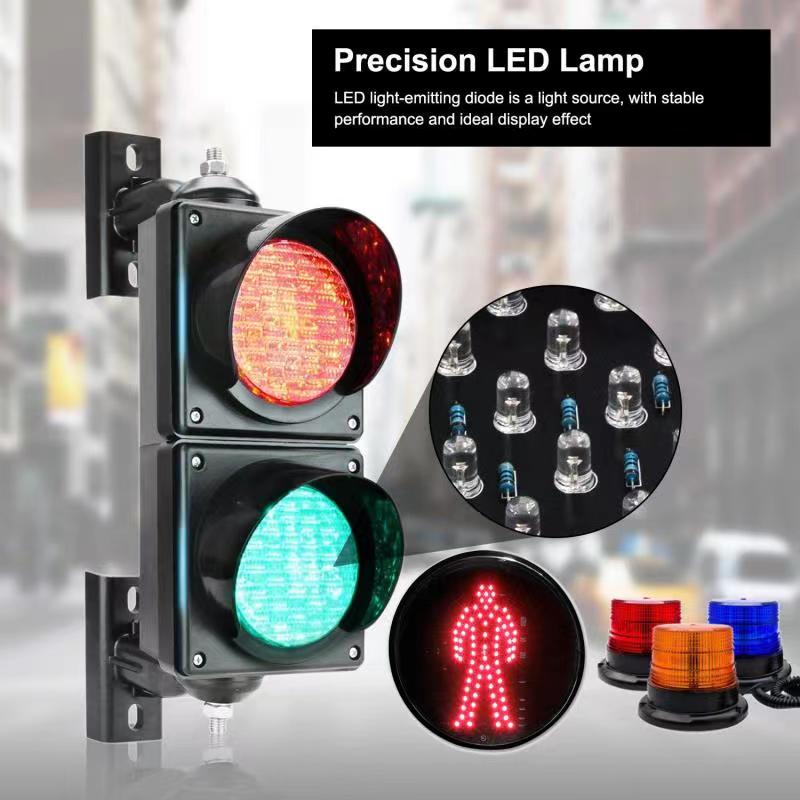

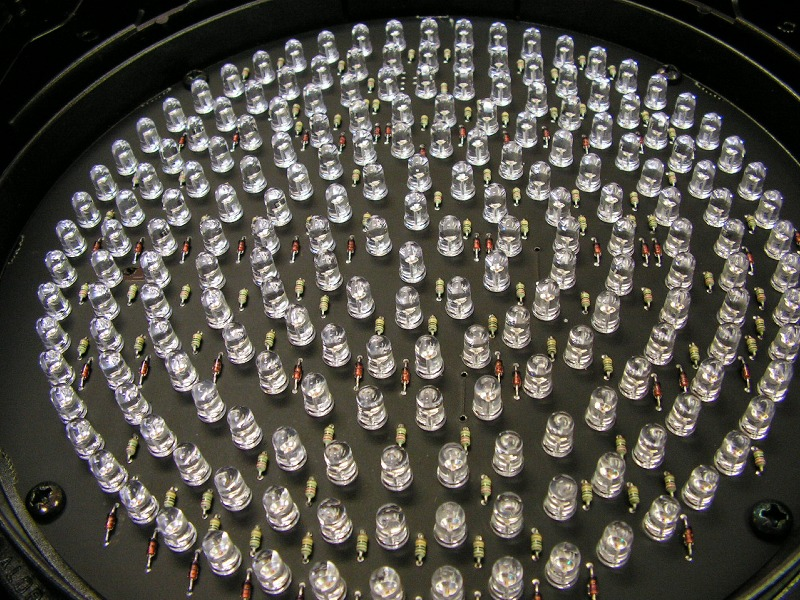

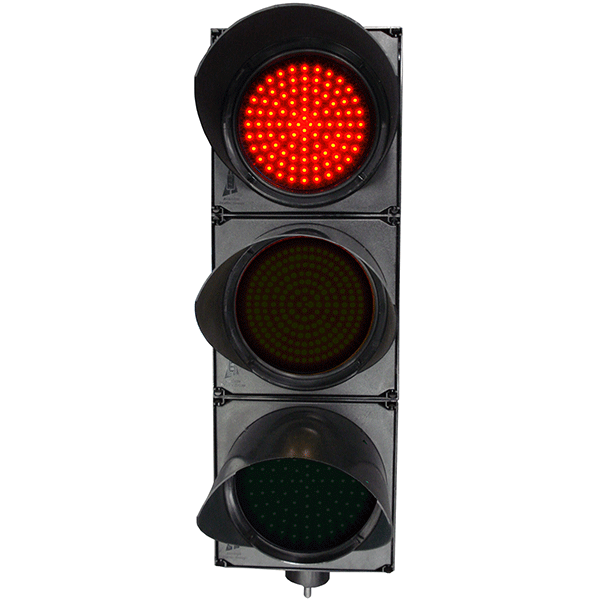

Reliable quality through hole led components mainly used for traffic light.
