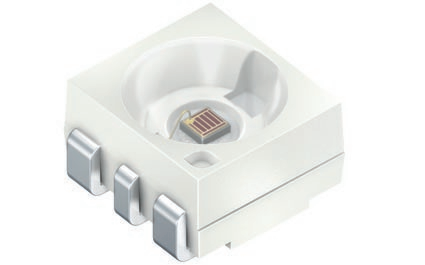

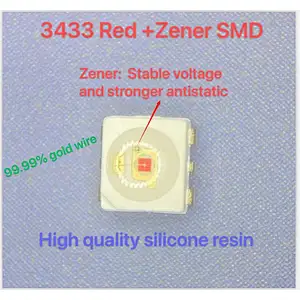

3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED
3433 PLCC-6  SMD LED

3433 PLCC-6 SMD LED

Model NO.
3433 PLCC-6 SMD LED
Quantity:
FOCUS ON AUTOMOTIVE LED
Product parameters
Product TypePart NumberColorWLD(nm)/
CCT(k)
IV(mcd)VF(v)IF(mA)ESDViewing           Angle°
TOP LED
PLCC-6 3433  Series
BDS-HR-000000Red616-6284530-80801.9-2.651408KV120
BDS-HY-000000Yellow584-5967400-88001.9-2.651408KV120
BDS-HB-000000Blue464-4761890-45802.8-3.81408KV120
BDS-HPA-000000PC-Amber589.2-592.35600-118002.8-3.61408KV120
BDS-HCW-000000Cool White5300-70007580-178002.8-3.61408KV120

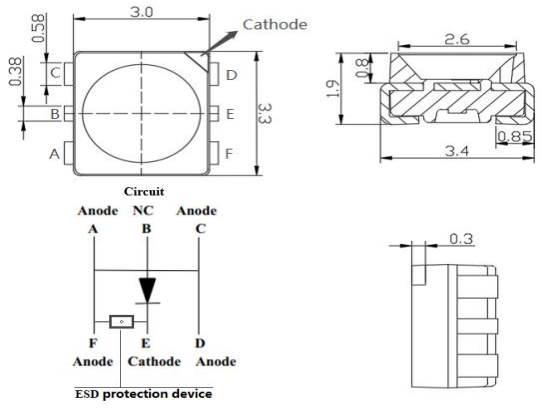

  Dimensions:
