PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd
PLCC-4 2835 dual color smd

PLCC-4 2835 dual color smd

Model NO.
2835 dual color smd
Quantity:
FOCUS ON AUTOMOTIVE LED
Product parameters
Product TypePart NumberColorWLD(nm)/
CCT(k)
Luminous Intensity
(lm)
VF(v)IF(mA)Viewing           Angle°
PLCC-4  2835 0.5W Dual Color
TOP LED Series
BND-2835WRH-BD-JE20GP30TRed+White620-630nm/
6000-7000k
25-39lm/
52-60lm
1.9-2.5/
2.8-3.4
150120
BND-2835WYH-BD-S2G12PSEYellow+white589-595nm/
6000-7000k
26-40lm/
52-60lm
1.9-2.5/
2.8-3.4
150120
BND-2835WWRH-BD-EG1722RURed+Warm White620-630nm/
2800-3200k
25-39lm/
50-58lm
1.9-2.5/
2.8-3.4
150120
BND-2835RYH-BD-SP22G12RRed+Yellow620-630nm/
589-595nm
25-39lm/
26-40lm
1.9-2.5/
1.9-2.5
150120
BND-2835RBH-BD-TJS2HP8Red+Blue620-630nm/
460-470nm
25-35lm/
9-15lm
1.9-2.5/
2.8-3.4
150120

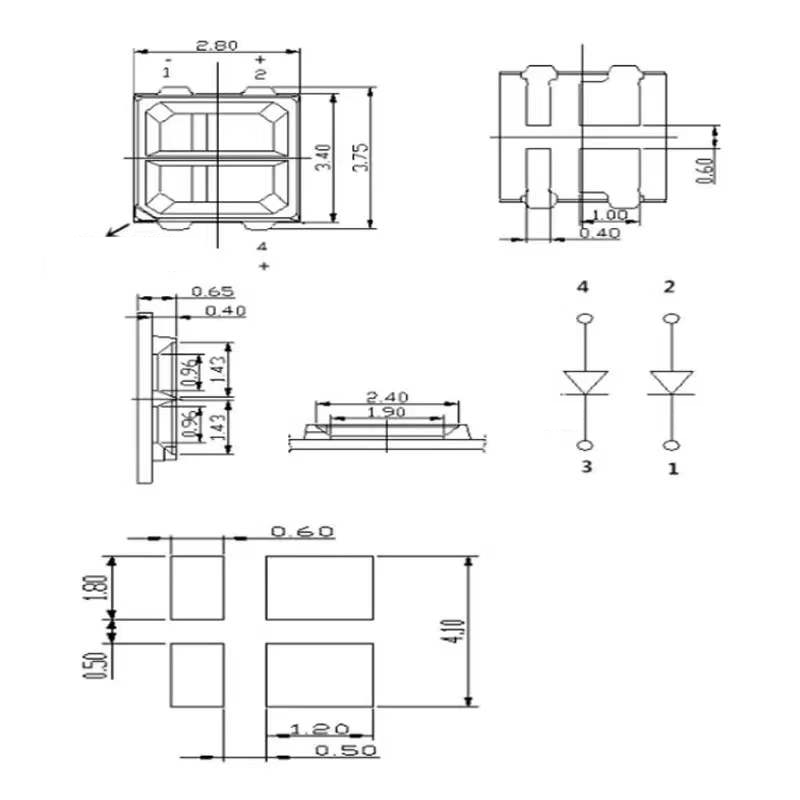

Dimensions:
