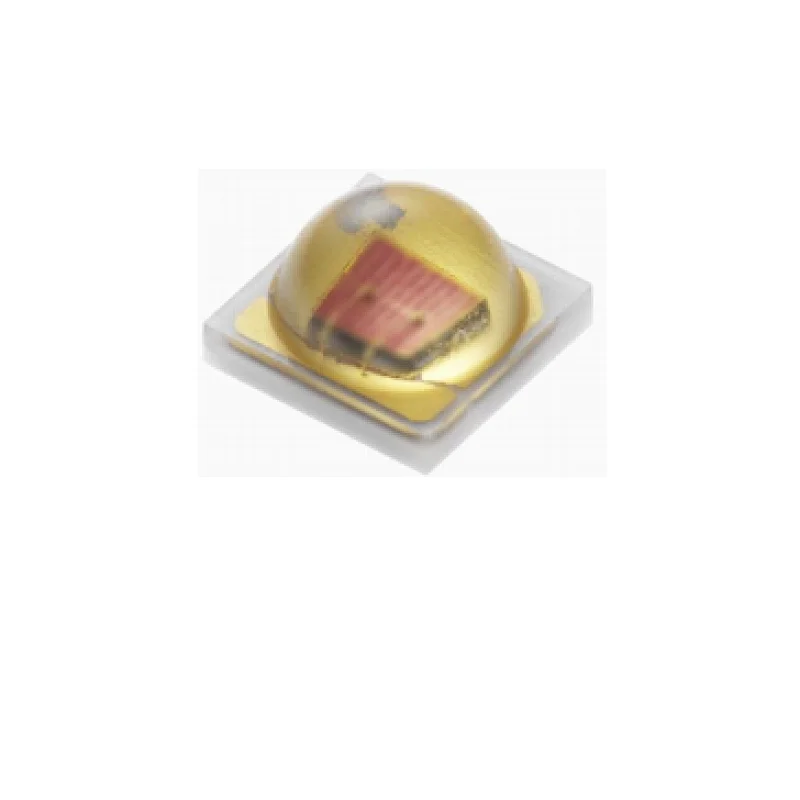

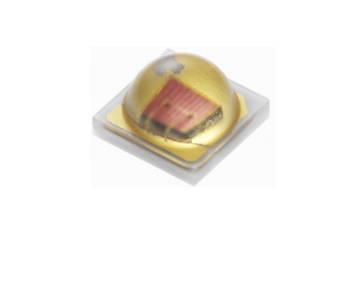

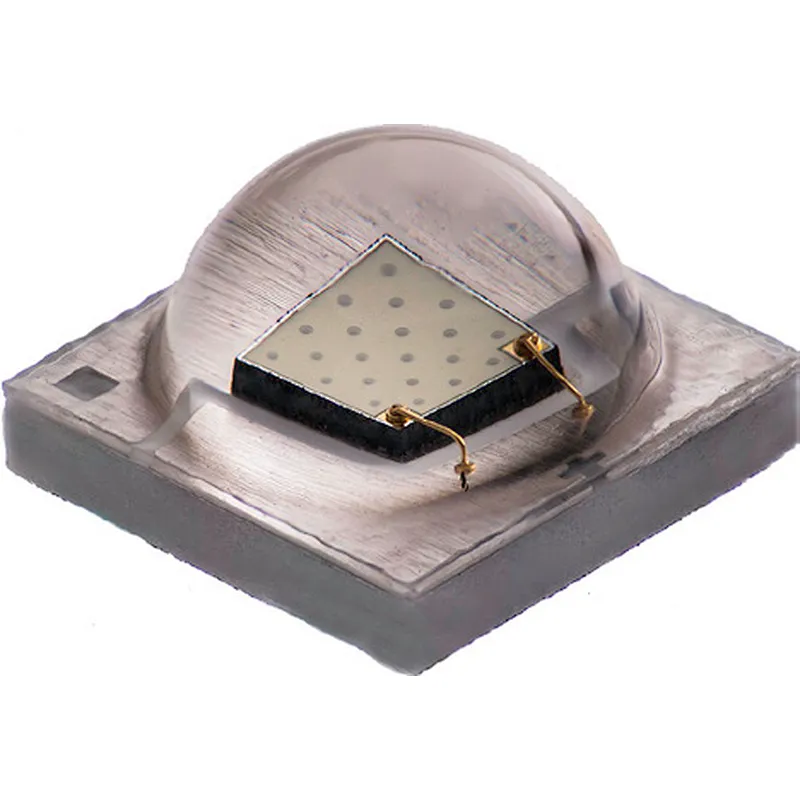

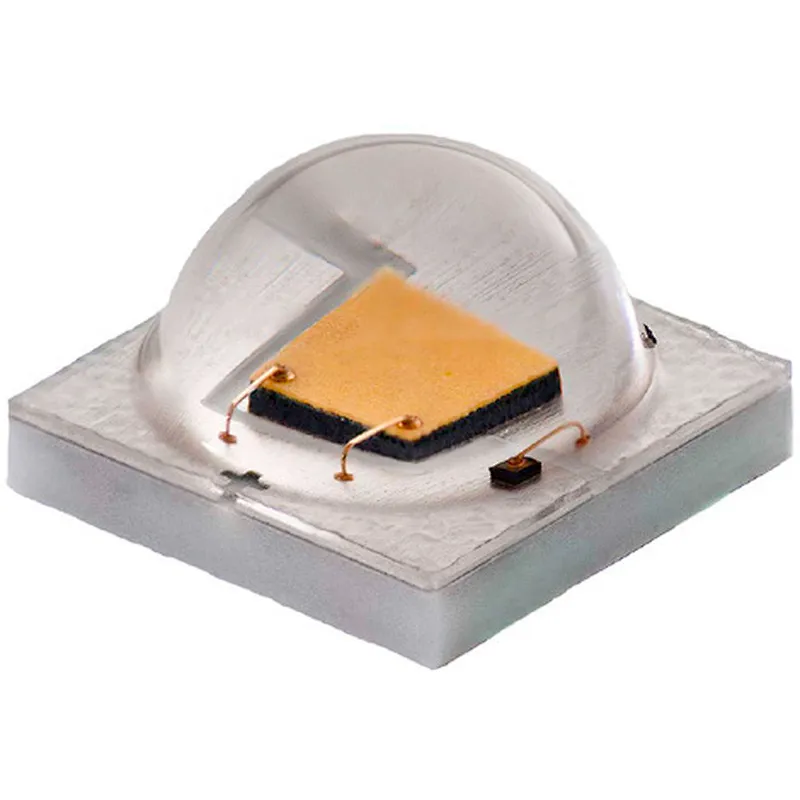

Ceramic 3030 high power SMD

Model NO.
Ceramic 3030 high power SMD
Quantity:
FOCUS ON AUTOMOTIVE LED


Product Parameters
Product TypePart NumberColorWLD(nm)/
CCT(k)
IV(lm)VF(v)IF(mA)ESDViewing           Angle°
High Power

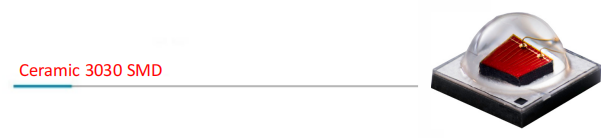

Ceramic 3030 SMD Series
BDT-NCE2R-000000Red620-62436.8-981.9-2.653508KV120
BDT-NCE2Y-000000Yellow584-59643.5-851.9-2.653508KV120
BDT-NCE3B-000000Blue464-47018.2-43.52.8-3.63508KV120
BDT-NCE3G-000000Green520-54085-1502.65-3.43508KV120
BDT-NCE3PA-000000PC-Amber589.2-592.385-1502.8-3.63508KV120
BDT-NCE3PB-000000PC-Blue470-48058.7-1102.8-3.63508KV120
BDT-NCEW3-000000Cool White5300-700098-1702.65-3.63508KV120

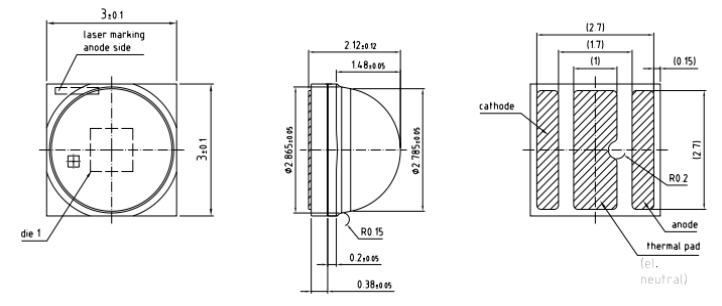

Dimensions:
