FOCUS ON AUTOMOTIVE LED |
| Product parameters | ||||||||
| Product Type | Part Number | Color | WLD(nm)/ CCT(k) | IV(lm) | VF(v) | IF(mA) | ESD | Viewing Angle【°】 |

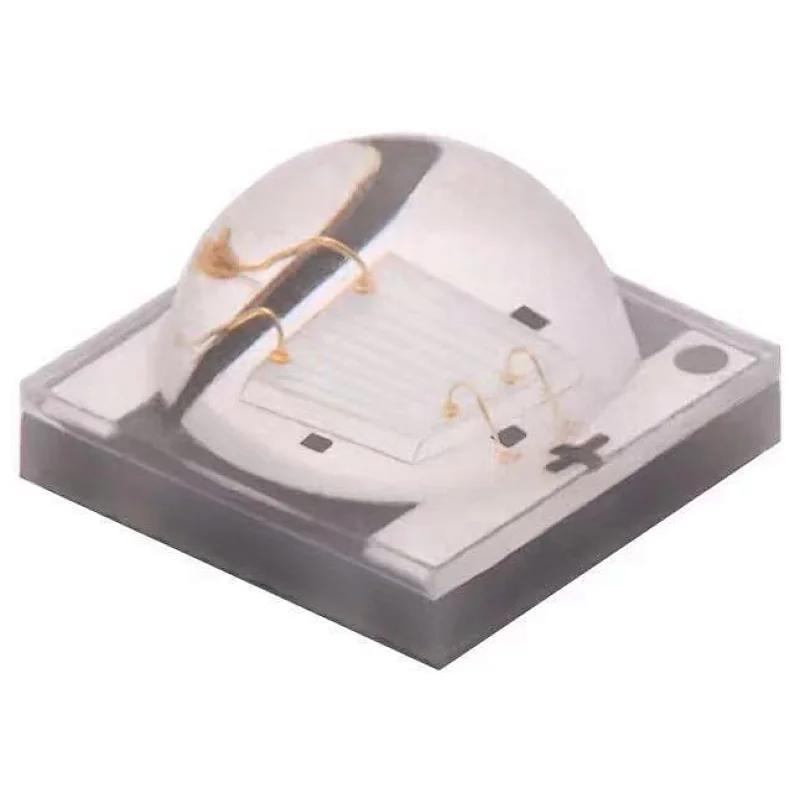

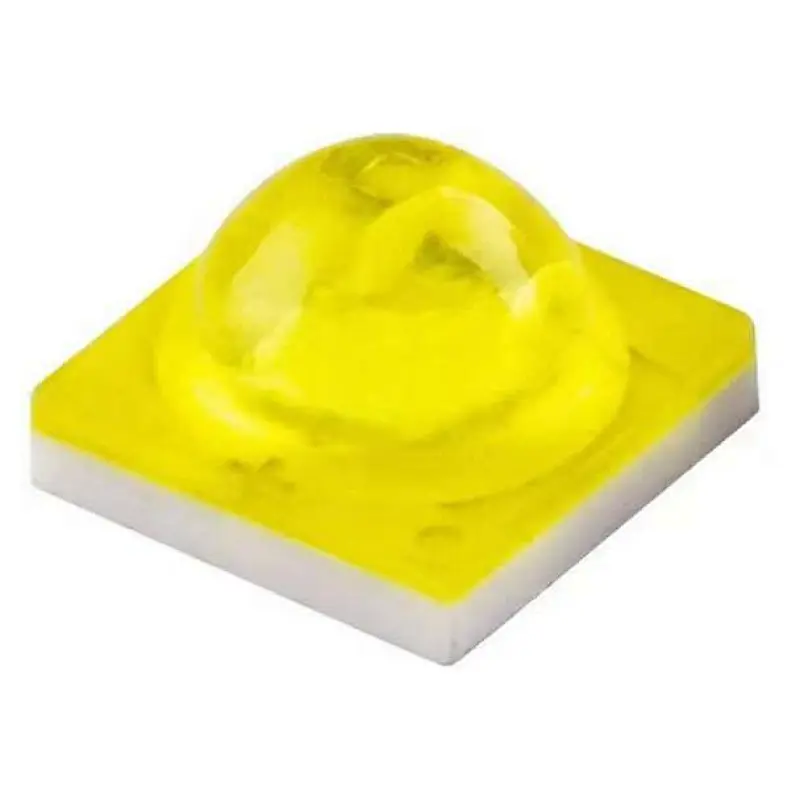

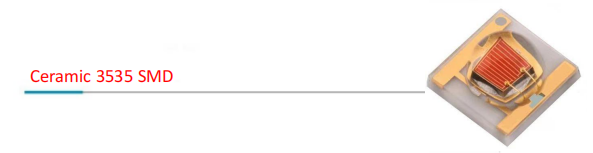

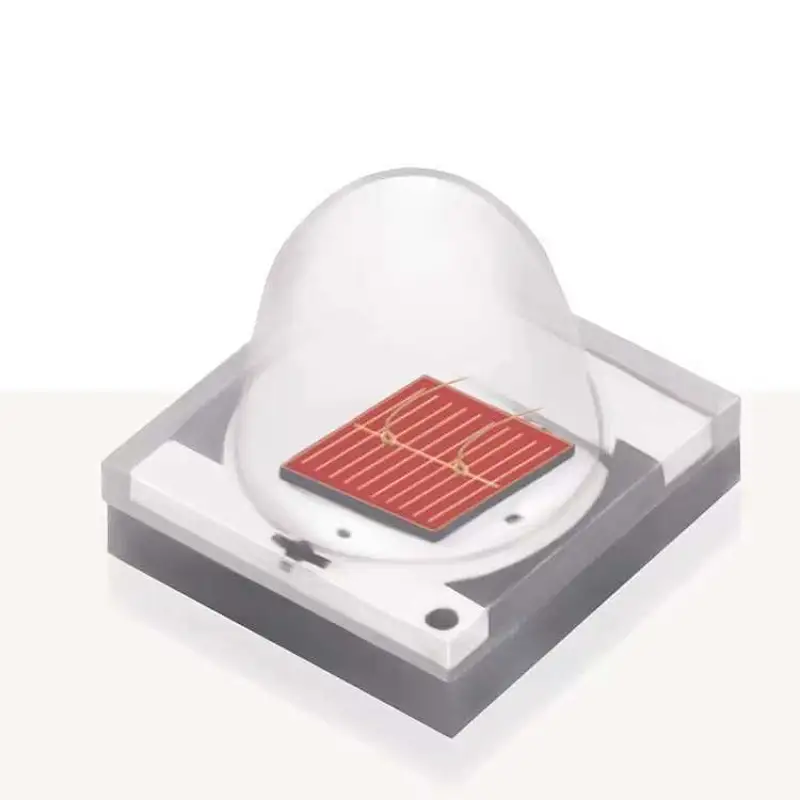

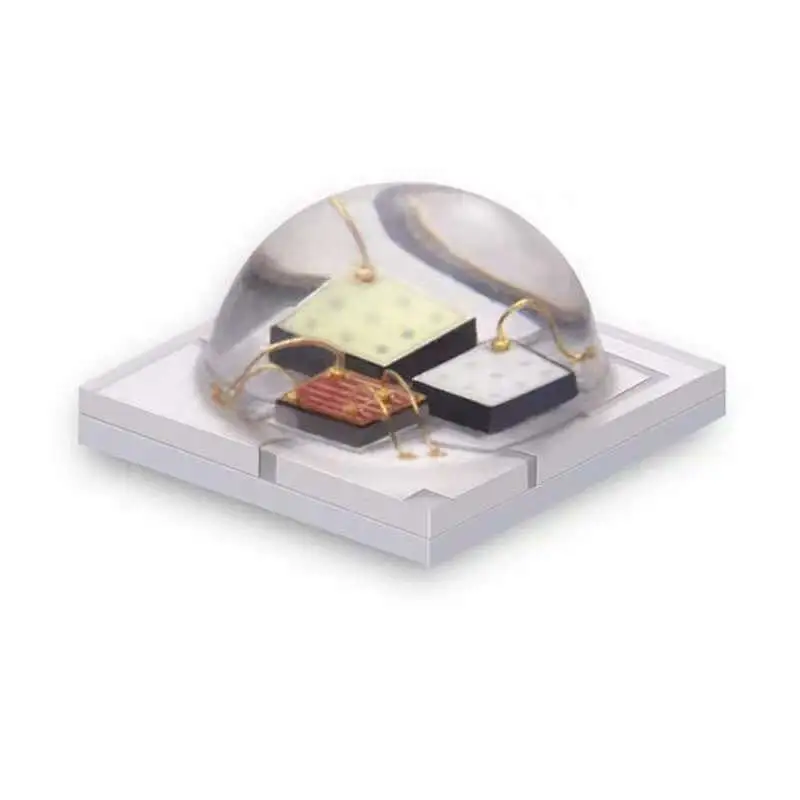

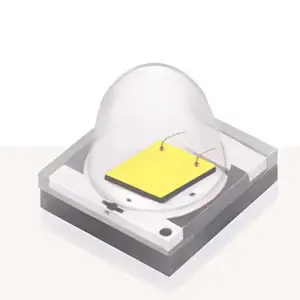

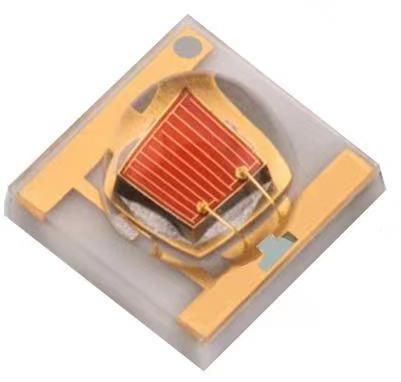

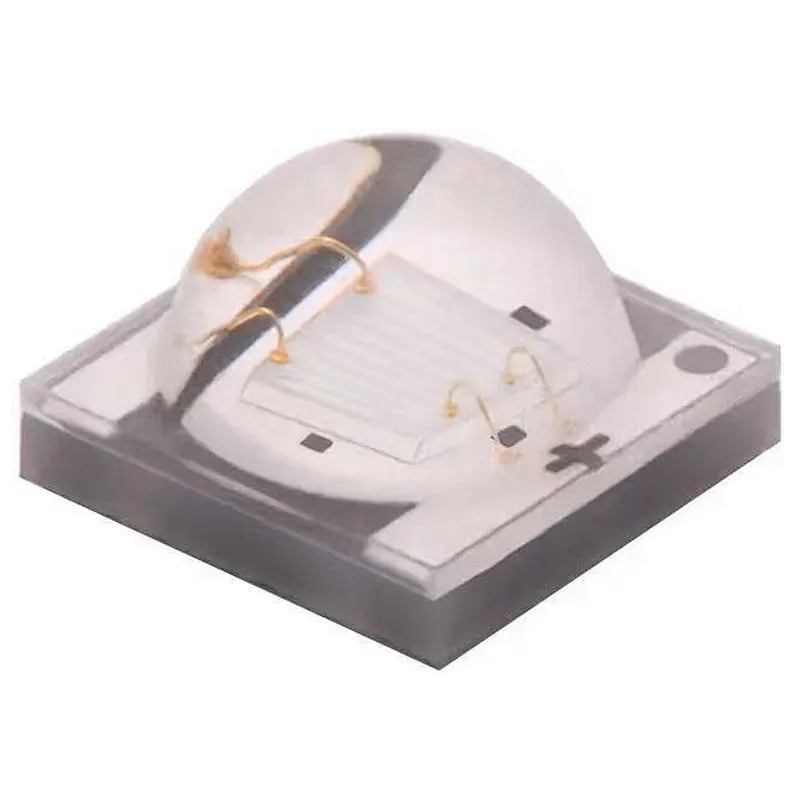

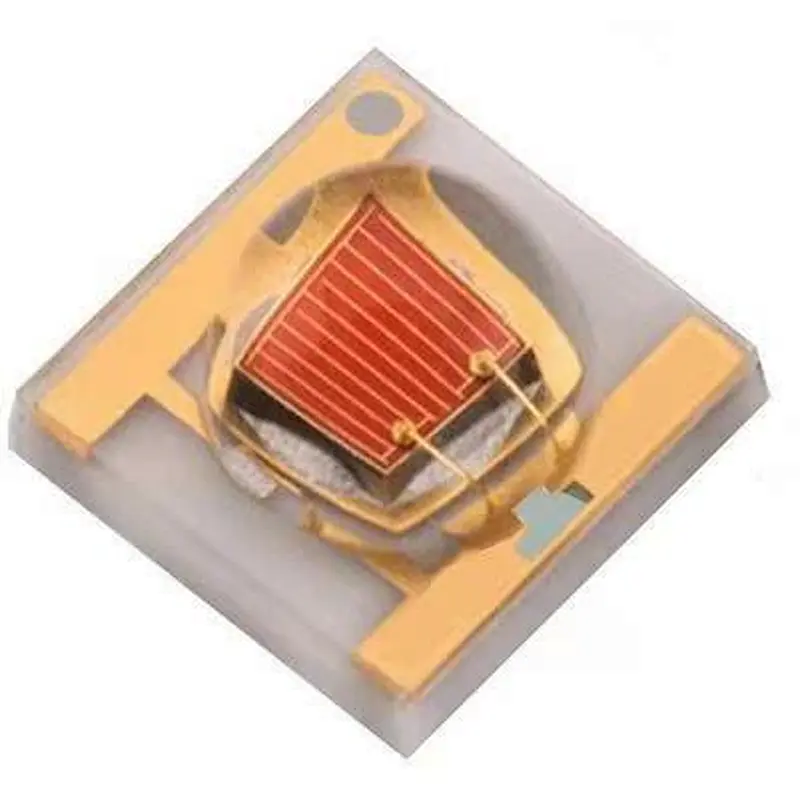

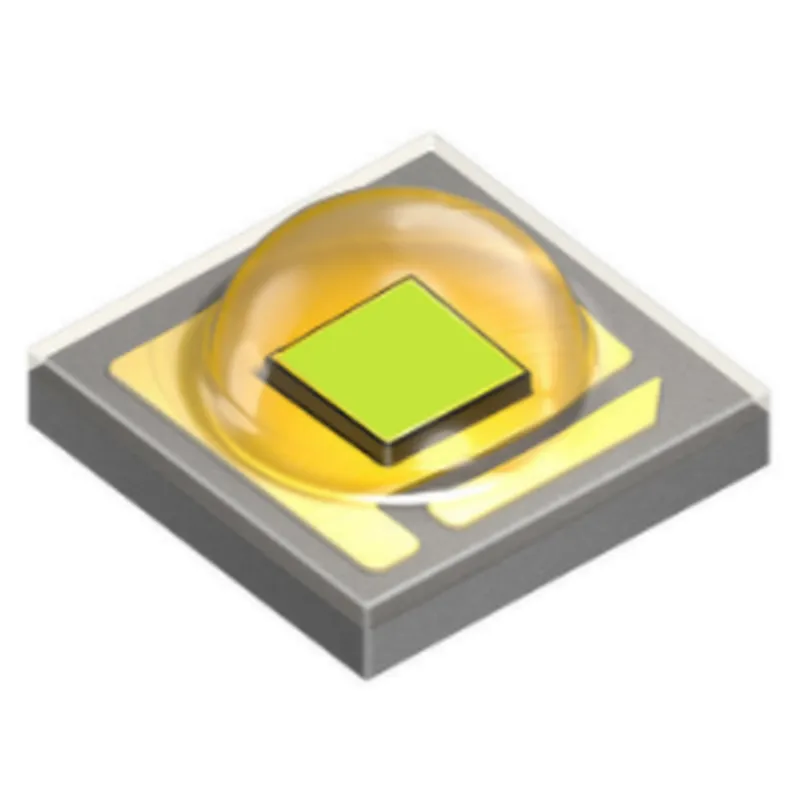

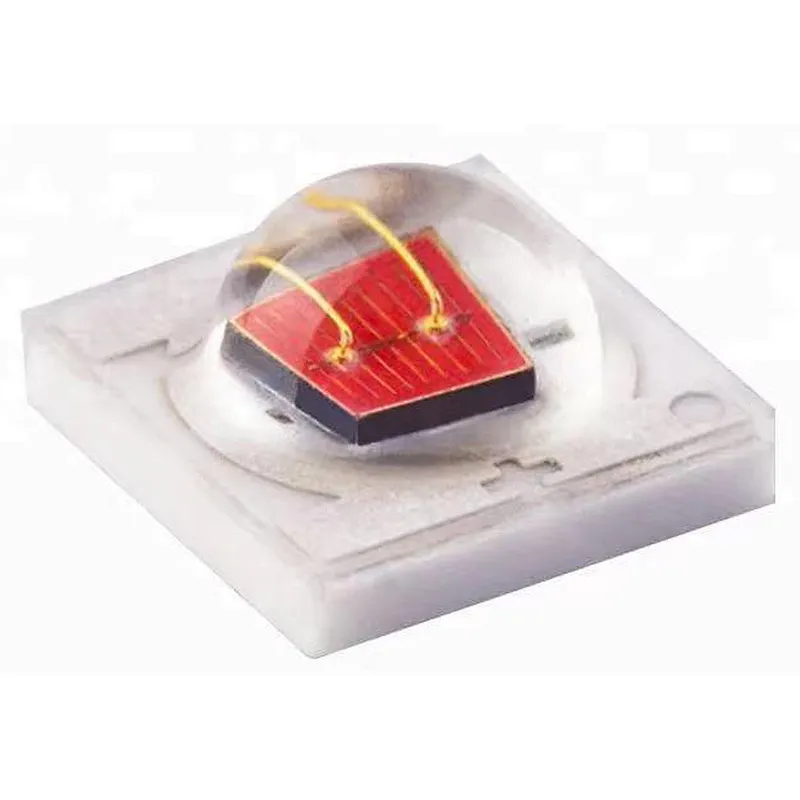

| Ceramic 3535 SMD LED Series | BND-CE35RH-BD-GE0429 | Red | 620-630nm | 60-80 | 2.0-2.6 | 350 | 8KV | 120 |
| BND-CE35AH-BD-GB0452 | Yellow | 585-595nm | 58-80 | 2.0-2.6 | 350 | 8KV | 120 | |
| BND-CE35BH-BD-E45GP08 | Blue | 460-470 | 30-40 | 2.8-3.5 | 350 | 8KV | 120 | |
| BND-CE35GH-BD-GE1458 | Green | 520-530 | 130-145 | 2.8-3.5 | 350 | 8KV | 120 | |
| BND-CE35WH3-BD-G4J510EP | White | 7000-8000 | 125-135 | 2.8-3.5 | 350 | 8KV | 120 | |
| BND-CE35BP1-BD-C45GRJ95T | pc-blue | 475-485 | 80-100 | 2.8-3.5 | 350 | 8KV | 120 | |
| BND-CE35PAH-BD-G46Z8LC | pc-amber | 1800-1900 | 80-100 | 2.8-3.5 | 350 | 8KV | 120 | |

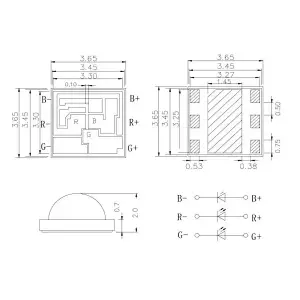

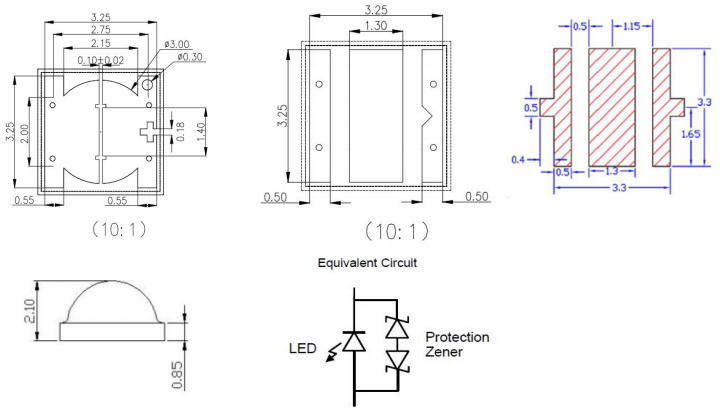

Dimensions:
