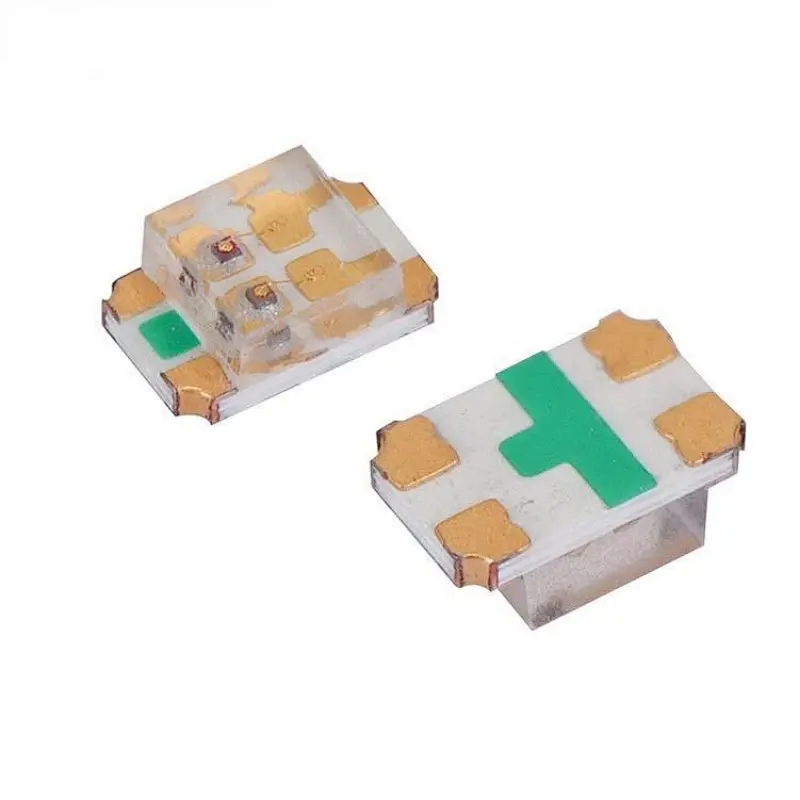

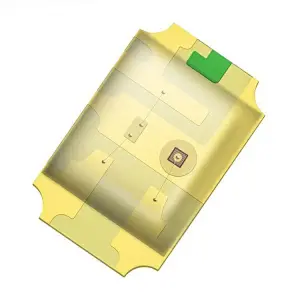

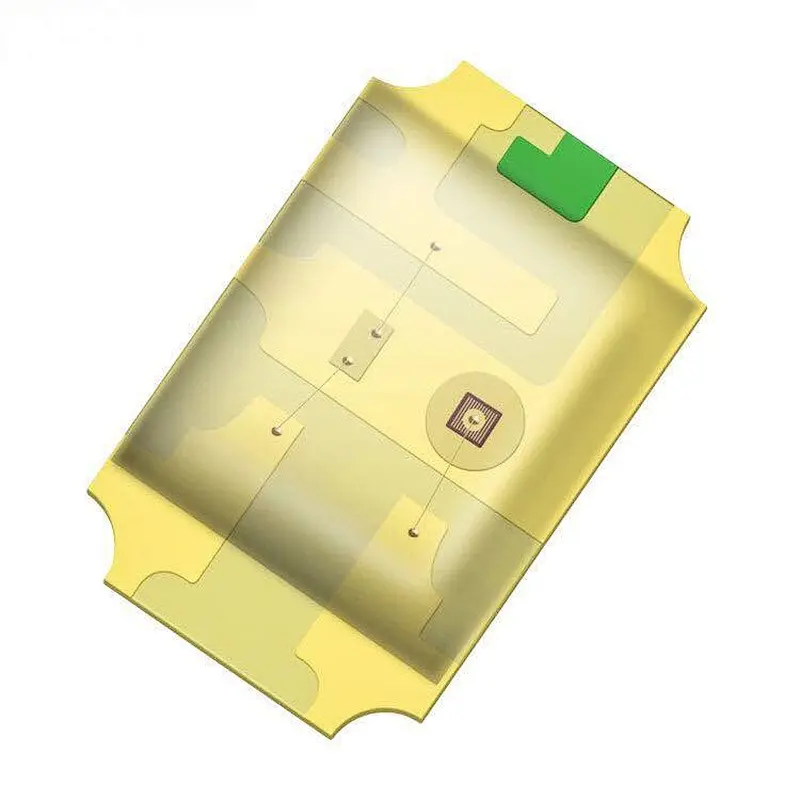

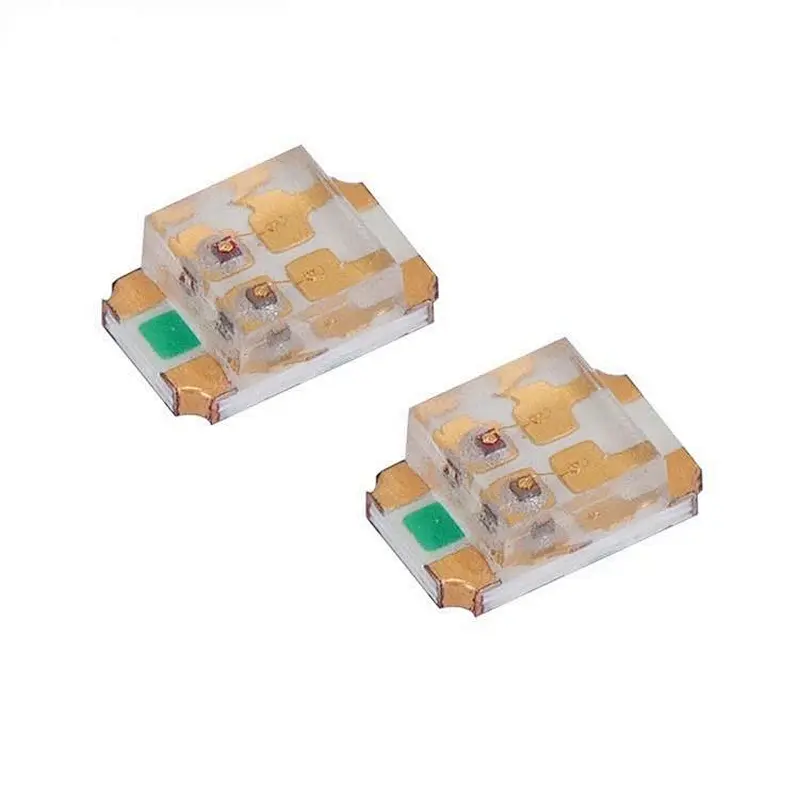

Bi-color 0805 smd led Features:
1. Chip Material: AlGalnP/InGaN.
2: Lens Color: water clear/yellow diffused.

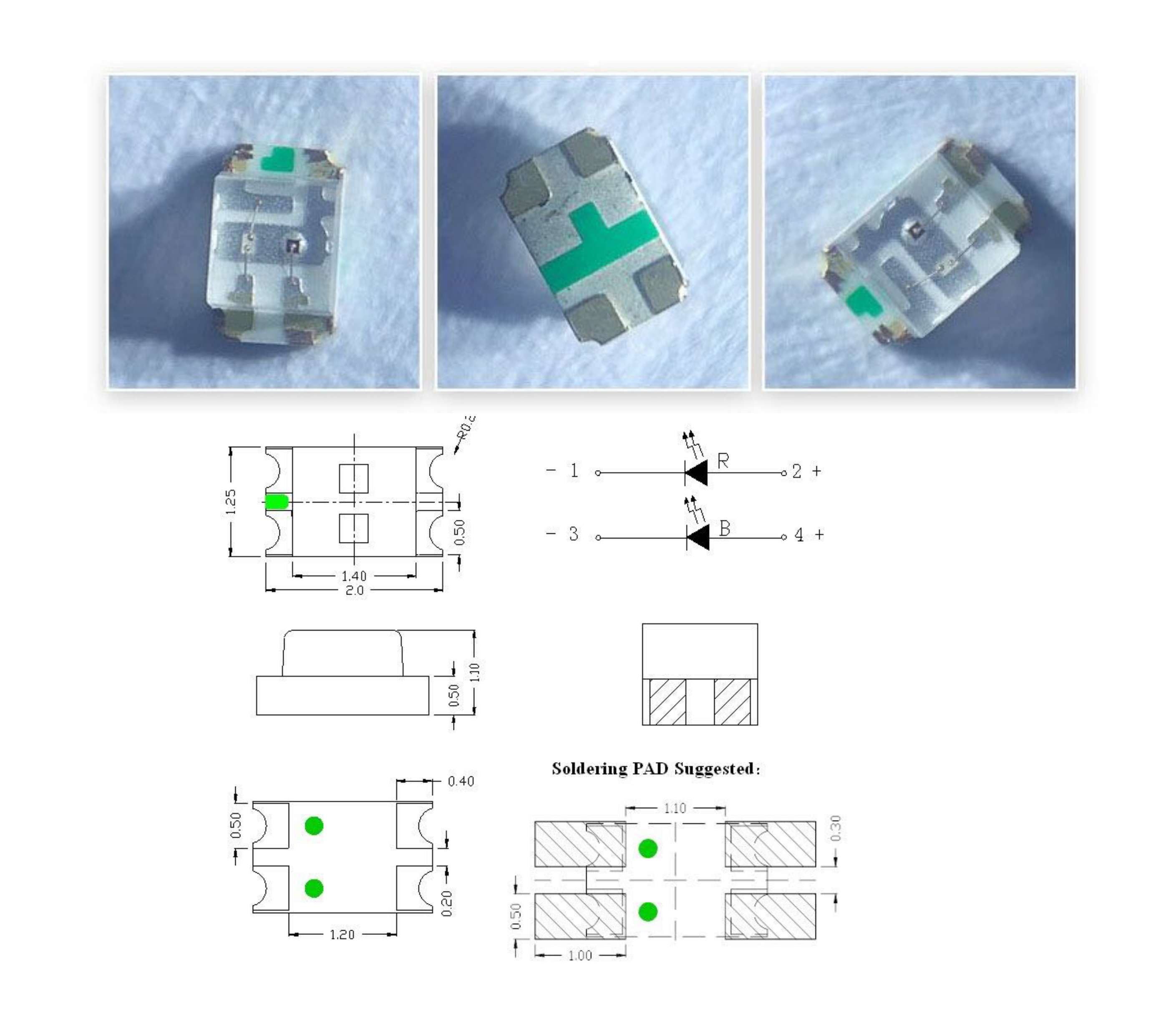

3: 2.0*1.25*0.8mm(0805)standard package.
4: Suitable for all SMT assembly methods.
5: Compatible with infrared and vapor phase reflow solder process.
6: Compatible with automatic placement equipment.
| Part Number | Emitted Color | WD(nm)/ CCT.(K) | Lens Color | Vf(V) IF=20mA | Iv(mcd) IF=20mA | Viewing Angle | ||
| Min | Max | Min | Typ | |||||
| BND-0805RYGC | Red | 625 | Water Clear | 1.8 | 2.4 | 60 | 120 | 120 |
| Yellow Green | 570 | 1.8 | 2.4 | 25 | 50 | |||
| BND-0805RYC | Red | 625 | 1.8 | 2.4 | 60 | 120 | 120 | |
| Yellow | 590 | 1.8 | 2.4 | 60 | 120 | |||
| BND-0805RBC | Red | 625 | 1.8 | 2.4 | 60 | 120 | 120 | |
| Blue | 465 | 2.8 | 3.6 | 60 | 120 | |||
| BND-0805YBC | Yellow | 590 | 1.8 | 2.4 | 80 | 120 | 120 | |
| Blue | 465 | 2.8 | 3.6 | 80 | 120 | |||
| BND-0805RTGC | Red | 625 | 1.8 | 2.4 | 100 | 150 | 120 | |
| Pure Green | 525 | 2.8 | 3.6 | 300 | 500 | |||
| BND-0805YTGC | Yellow | 590 | 1.8 | 2.4 | 100 | 150 | 120 | |
| Pure Green | 590 | 2.8 | 3.6 | 300 | 500 | |||
| BND-0805RWC | Red | 625 | Yellow Diff. | 1.8 | 2.4 | 60 | 120 | 120 |
| White | 7000 | 2.8 | 3.6 | 250 | 500 | |||
| BND-0805OWC | Orange | 600 | 1.8 | 2.4 | 60 | 120 | 120 | |
| White | 7000 | 2.8 | 3.6 | 250 | 500 | |||
| BND-0805RGBC | Red | 625 | 1.8 | 2.4 | 80 | 160 | 120 | |
| Pure Green | 525 | 2.8 | 3.6 | 300 | 600 | |||
| Blue | 465 | 2.8 | 3.6 | 80 | 160 | |||
| APPLICATIONS |
| APPLICATION SCENARIOS: High quality LED encapsulation of many specification are widely used in LED electronic display screen,traffic lights, indicator lights,automobile lamps and lanterns,medium size back light,communications equipment,commercial lighting, decorative lamps,home lighting,and other fields. |
