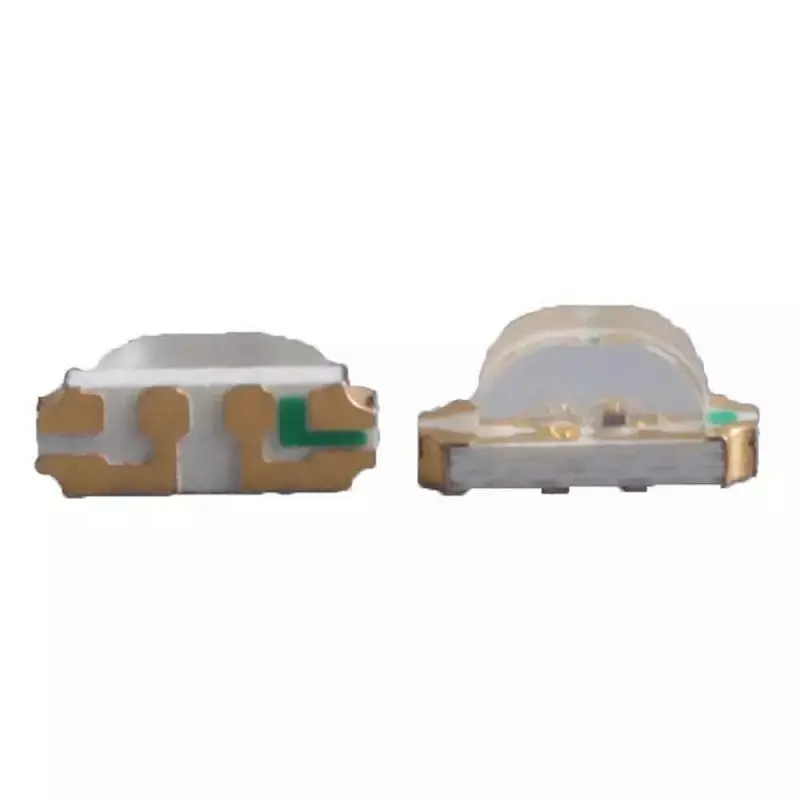

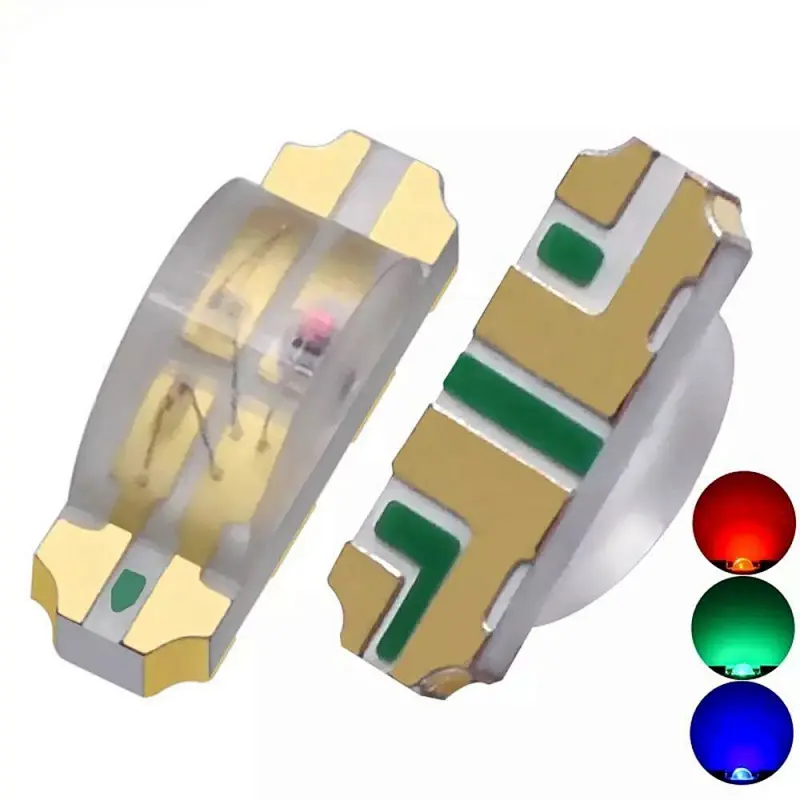

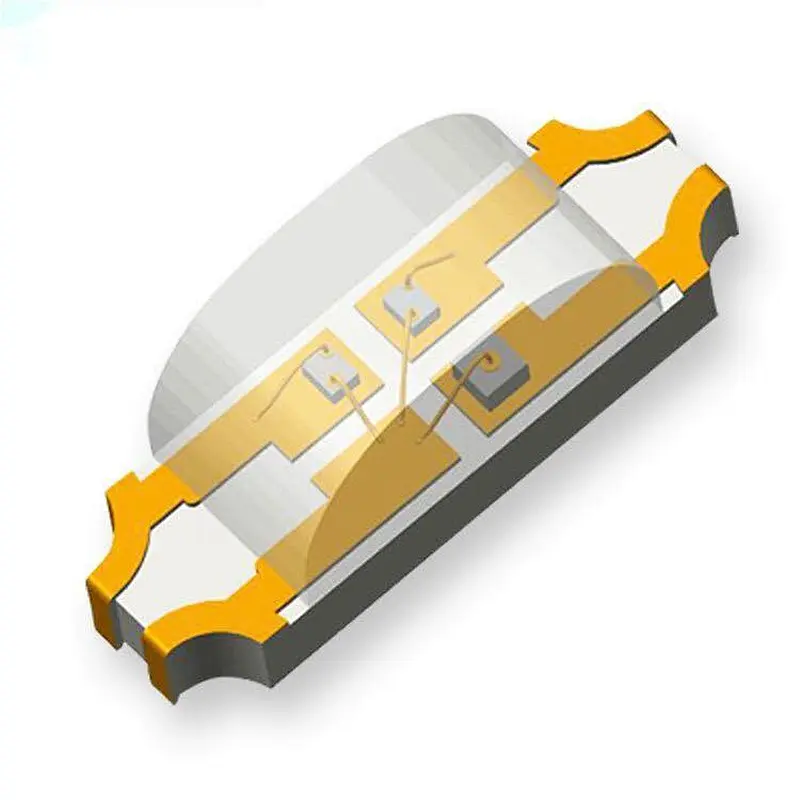

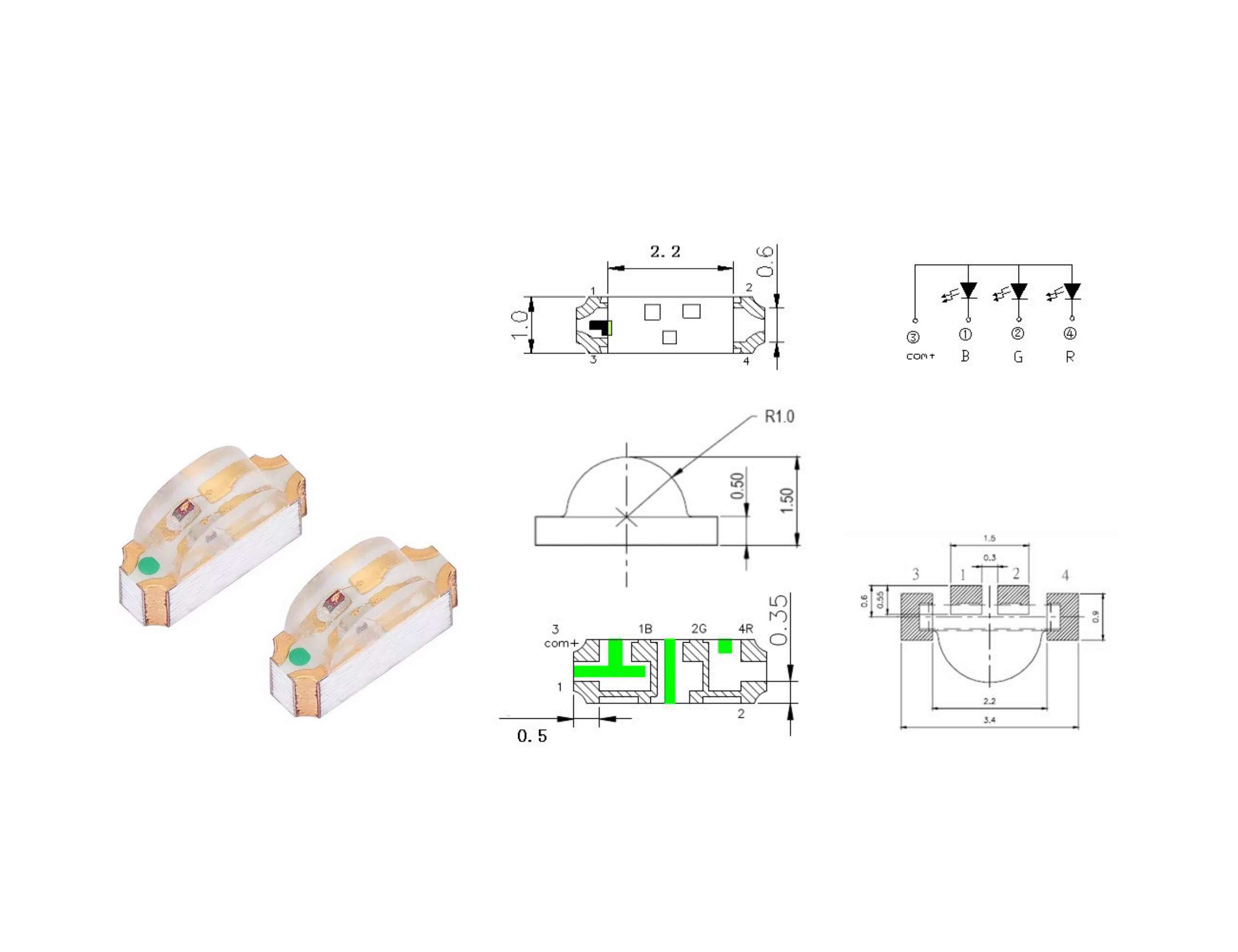

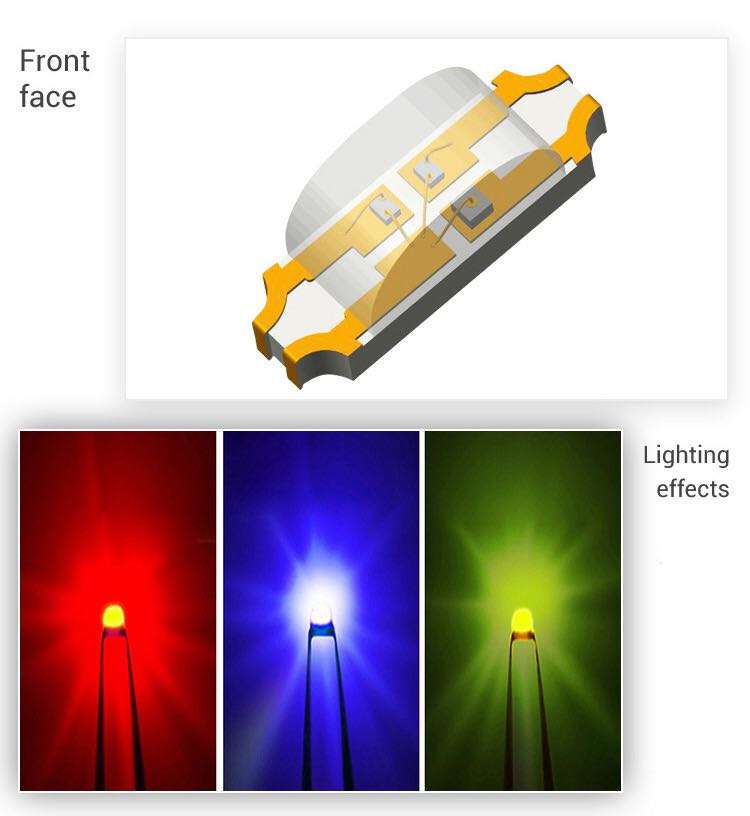

| Absolute Maximum Ratings At Ta=25℃ | ||||
| Parameter | Symbol | Rating | Unit | |
| Power Disspation | Pd | R | 75 | mW |
| G | 135 | |||
| B | 135 | |||
| Peak Forward Current (1/10 Duty Cycle,0.1ms Pulse Width) | IFP | R | 70 | mA |
| G | 100 | |||
| B | 100 | |||
| DC Forward Current | IF | R | 25 | mA |
| G | 25 | |||
| B | 25 | |||
| Reverse Voltage | VR | R | 5 | V |
| G | 5 | |||
| B | 5 | |||
| Operating Temperature Range | Topr | -30 〜+ 80 ℃ | ||
| Storage Temperature Range | Tstg | -40〜 + 90 ℃ | ||
| Soldering Condition | Tsol | Reflow soldering: 260℃ For 5 Seconds Hand soldering: 300℃ For 3 Seconds | ||
| Electrical Optical Characteristics At Ta=25℃ | |||||||
| Parameter | Symbol | Colors | Min. | Typ. | Max. | Unit | Test Conditon |
| Luminous Intensity | IV | R | 60 | mcd | IF=5mA | ||
| G | 300 | ||||||
| B | 60 | ||||||
| Dominant Wavelength | λd | R | 620 | 630 | nm | IF=5mA | |
| G | 520 | 525 | |||||
| B | 460 | 470 | |||||
| Peak Wavelength | λp | R | 625 | nm | IF=5mA | ||
| G | 465 | ||||||
| B | 525 | ||||||
| Spectral Line Half-Width | ∆λ | R | 18 | IF=5mA | |||
| G | 35 | ||||||
| B | 30 | ||||||
| Forward Voltage | VF | R | 1.8 | 2.6 | v | IF=5mA | |
| G | 2.8 | 3.6 | |||||
| B | 1.8 | 3.6 | |||||
| Reverse Current | IR | R | 5 | uA | IF=5mA | ||
| G | 5 | ||||||
| B | 5 | ||||||
| Viewing Angle | 2θ½ | deg | IF=5mA | ||||
| APPLICATIONS |
| APPLICATION SCENARIOS: High quality LED encapsulation of many specification are widely used in LED electronic display screen,traffic lights, indicator lights,automobile lamps and lanterns,medium size back light,communications equipment,commercial lighting, decorative lamps,home lighting,and other fields. |
